ADA COMPLIANT. SPIKE'S MADE TRUE.

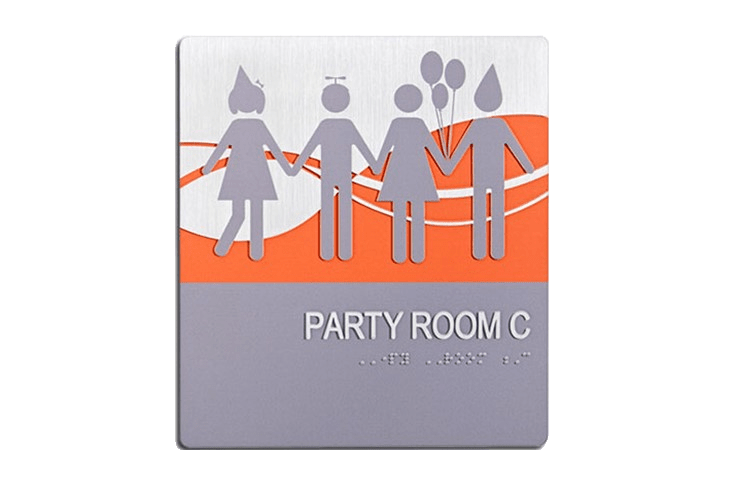

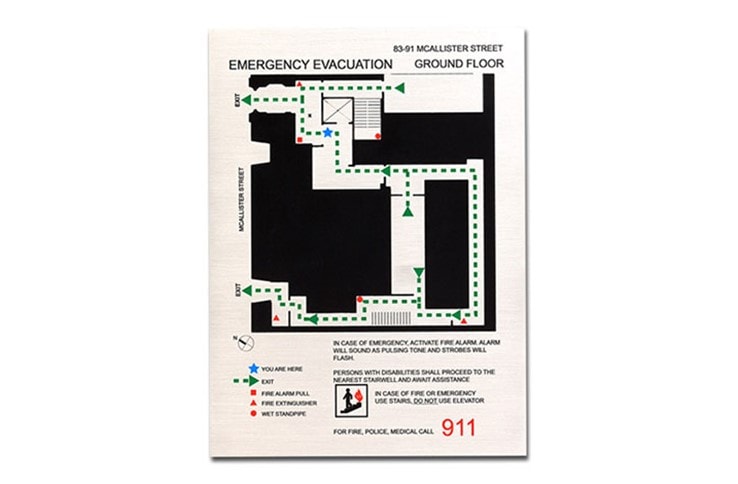

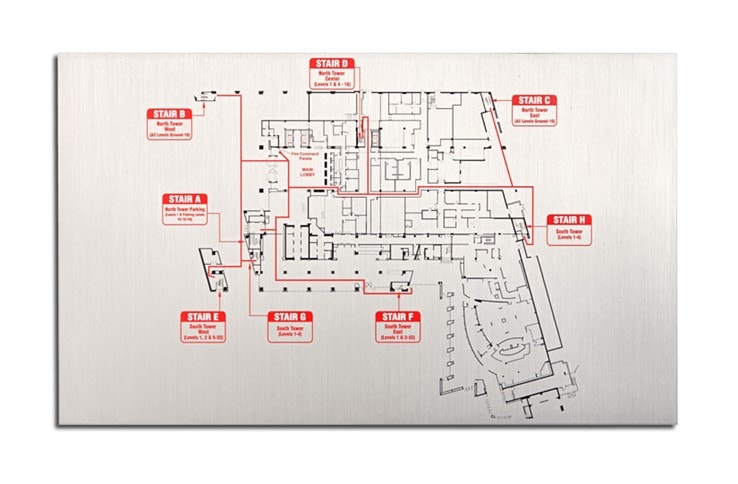

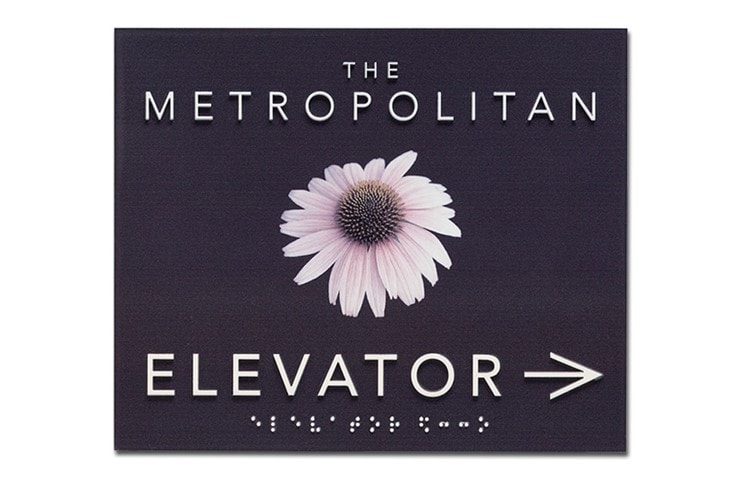

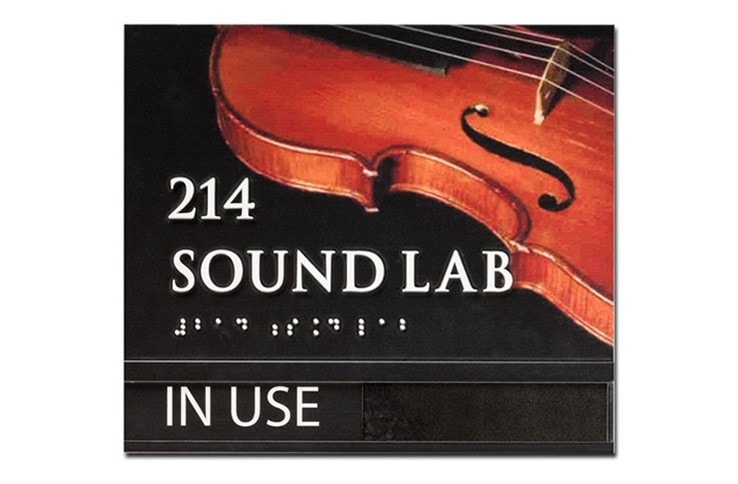

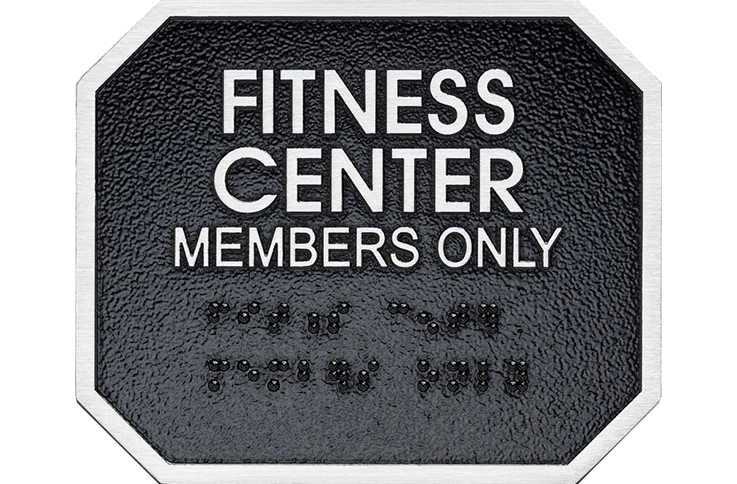

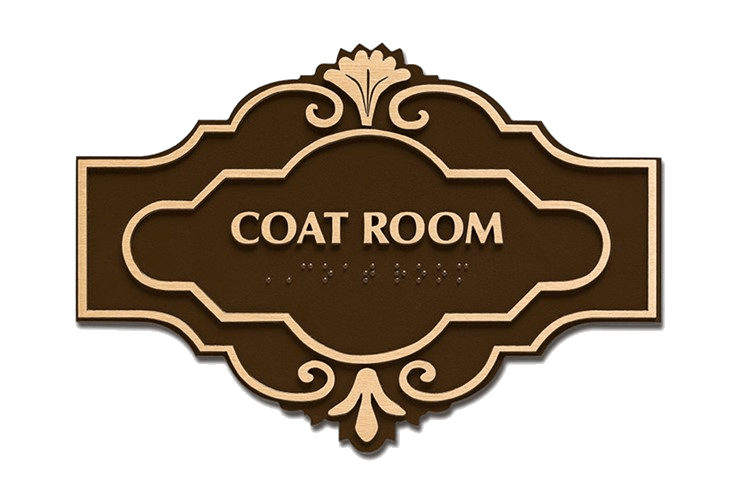

All of our ADA/wayfinding plaques are designed and manufactured to meet ADA requirements, and made from solid metal in order to provide a superior product that will not chip or crack.

MORE METALS, MORE COLORS

You can choose from base metal, painted colors or up to 1200 dpi photographic images for the surfaces of your plaques. All plaques are UV-stable, exterior-grade.

A BEAUTIFUL FORM

Our patent-pending ADA process does not use loose beads for Braille, nor rely on imperfect, noncompliant adaings. The result is a breathtaking example of how ADA-compliant signs in the form of a precision-tooled Spike's plaque don’t have to be a distraction from a project’s overall beauty, but instead can enhance it.

LIFETIME GUARANTEE

We have a stringent in-house laboratory testing processes for all metals and paints. Our finishes have withstood thousands of hours’ exposure to salt fog, moisture, heat cycles, and UV light so we can confidently say they’ll last a lifetime.

STANDARD ADA PLAQUES


STYLE A

STYLE B

STYLE C

STYLE D

STYLE E

STYLE F

STYLE G

STYLE H

STYLE I

STYLE J

STYLE K

STYLE L

MOUNT TYPES


BLIND STUD MOUNT

Back of plaque is drilled and tapped to receive threaded studs. Studs are pressed into pre-drilled wall holes and secured with adhesive and/or anchors – based on the wall type and letter weight. Studs can be aligned in-line for brick or block mortar upon request.

view drawing

SOLID WALL

Machine screws, passing through plaque holes, with or without decorative rosettes. Screws are either bonded into wall holes with adhesive or a combination of adhesives and anchors – based on wall and plaque size and weight.

HOLLOW WALL

Machine screws with toggle, passing through plaque holes, with or without decorative rosettes. Screws are then tightened to expand toggle in a hollow wall cavity.

WOOD MOUNT

Wood screws, passing through plaque holes, with or without decorative rosettes. Screws are screwed into a wooden wall surface or bonded with adhesive to further secure.

GARDEN STAKE

Machine screws are inserted through 5/16”-thick black anodized stakes into the back of the plaque. Maximum plaque size is 12” x 8” for one stake or 20” x 8” for two stakes. Available in heights of 24”, 36” and 48”.

POST MOUNT

Black painted aluminum brackets are attached to the back of the plaque with machine screws. An aluminum square post bolts into the bracket at a 45˚ or 90˚ angle. Plaques over 24” wide require two posts. Posts are available in heights of 6’ or 8’. A 1”-wide post is recommended for plaques up to 250 square inches, 1-1/2” for plaques up to 450 square inches, and 2” for plaques up to 720 square inches.

DRAWINGS & INSTALL TEMPLATES


Drawings & Install Templates

Several types of drawings are available. Some of these are full size while others are on 8.5" x 11" sheets.
